Citace:## Zinc Cable Analysis for 10A Power Transfer

### Material Properties of Zinc
- Resistivity (ρ) at 20°C: 5.96 × 10^-8 Ω⋅m
- Relative magnetic permeability (μr): ≈ 1 (zinc is diamagnetic)

### Optimal Diameter Calculation

1. For a 10A current, we typically use a safety factor of 1.5-2. Let's use 1.5:
Design current = 10A × 1.5 = 15A

2. Using a conservative current density of 3 A/mm²:
Required cross-sectional area = 15A / (3 A/mm²) = 5 mm²

3. Calculating the diameter:
A = πr², so r = √(A/π) = √(5/π) ≈ 1.26 mm
Diameter = 2r ≈ 2.52 mm

### Skin Effect Analysis

The skin depth (δ) is given by: δ = √(ρ / (π × f × μ0 × μr))

Where:
- f is the frequency
- μ0 is the permeability of free space (4π × 10^-7 H/m)

For 1 MHz:
δ = √(5.96 × 10^-8 / (π × 10^6 × 4π × 10^-7 × 1)) ≈ 77 μm

### High Frequency Attenuation

To calculate attenuation, we need to consider the ratio of the cable's radius to the skin depth.

Radius = 1.26 mm = 1260 μm

At 1 MHz, the ratio is 1260/77 ≈ 16.36

Using the ratio, we can estimate that most of the current (>98%) would be confined to the outer 77 μm of the conductor at 1 MHz.

For frequencies much higher than 1 MHz, the skin depth becomes even smaller, further concentrating the current flow near the surface and increasing attenuation.

### Resistance Comparison

DC resistance (2m length): R = ρL/A = (5.96 × 10^-8 × 2) / (5 × 10^-6) ≈ 0.0238 Ω

AC resistance at 1 MHz will be significantly higher due to the skin effect, potentially by a factor of 5-10 or more, depending on the exact frequency and geometry.

Claude AI napsal:Based on the limited information provided, I can offer an educated guess about how the Inverted Triode might work. However, please note that this is speculative and may not accurately represent the actual operation of the device.

Based on the description "Three electrodes, a cathode, grid and plate are combined," we can infer that the Inverted Triode likely still uses the same basic elements as a traditional triode vacuum tube, but potentially in a different configuration or with modified behavior. Here's a speculative explanation of how it might work:

1. Cathode: In a traditional triode, the cathode emits electrons when heated. In the Inverted Triode, this function might remain the same.

2. Grid: Normally, the grid controls the flow of electrons from the cathode to the plate. In the Inverted Triode, the grid's role might be modified, possibly acting as both a control element and an active part of the electron flow.

3. Plate: Typically, the plate collects electrons, creating the output signal. In this inverted design, the plate's function might be altered.

The term "inverted" suggests a reversal or significant change in the typical electron flow or electrode functions. Some possibilities include:

1. Reversed electron flow: Electrons might flow from the plate to the cathode, with the grid still acting as a control element but in a different manner.

2. Active grid: The grid might play a more active role in electron emission or collection, rather than just controlling the flow.

3. Multi-directional flow: Electrons could potentially flow between all three elements in a more complex pattern, creating unique amplification characteristics.

4. Altered electric fields: The arrangement of the electrodes might create unconventional electric fields, leading to different electron behaviors and thus different amplification properties.

5. Non-linear response: The inverted configuration might intentionally introduce non-linearities that are desirable for certain audio applications.

The unique operation could result in different gain characteristics, frequency response, or distortion patterns compared to traditional triodes. This might lead to a distinct "sound" that could be appealing for certain audio applications.

It's important to emphasize that without more detailed information from the inventors or technical specifications, this explanation is largely speculative. The actual operation of the Inverted Triode could be quite different from these guesses. Would you like me to elaborate on any specific aspect of this hypothetical operation?

Citace:Thank you for providing this additional information. It significantly clarifies the unique structure and operation of the Inverted Triode. Let's analyze this new information and update our understanding.

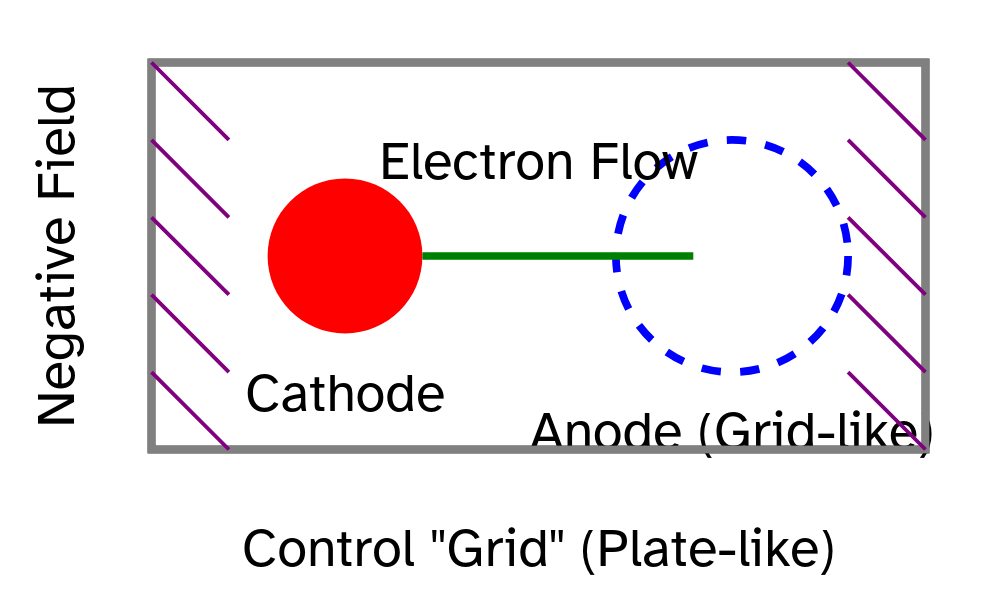

Based on this new information, let's revise our understanding of the Inverted Triode:

1. Cathode:
- Function remains similar to a traditional triode.
- Emits electrons when heated.

2. Anode (formerly the grid):
- Now a wire-grid-like structure.
- Positioned between the cathode and the outer structure.
- Attracts electrons emitted by the cathode.

3. Control "Grid" (formerly the plate):
- A plate-like structure enveloping the cathode/anode assembly.
- Maintains a very high negative electrical field.
- Acts to "push" electrons away from the anode.

Key differences from a traditional triode:

1. Electron flow:
- Electrons move directly from cathode to anode without impediment.
- No traditional grid exists between cathode and anode to control electron flow.

2. Control mechanism:
- The outer plate-like structure (control "grid") modulates the electron flow by shadowing the anode's electrical field.
- This is fundamentally different from a traditional triode where the grid directly intercepts the electron flow.

3. Field interactions:
- The high negative field of the control "grid" interacts with the anode's field, creating a unique electron acceleration and deceleration dynamic.

Potential implications:

1. Different gain characteristics: The unimpeded electron flow to the anode might result in higher gain or efficiency.

2. Unique frequency response: The interaction between the anode and control "grid" fields could lead to different frequency-dependent behaviors.

3. Potentially lower distortion: The lack of a physical grid intercepting electrons might reduce some forms of distortion.

4. Different control characteristics: Modulating the electron flow via field interactions rather than direct interception could result in a different response to input signals.

5. Possible noise reduction: The unimpeded electron flow might reduce shot noise typically associated with electrons hitting a physical grid.

This design represents a significant departure from traditional vacuum tube technology, potentially offering unique sonic characteristics and performance benefits. However, it would likely require specialized circuit designs to fully leverage its unique properties.

Would you like me to elaborate on any specific aspect of this revised understanding of the Inverted Triode?
